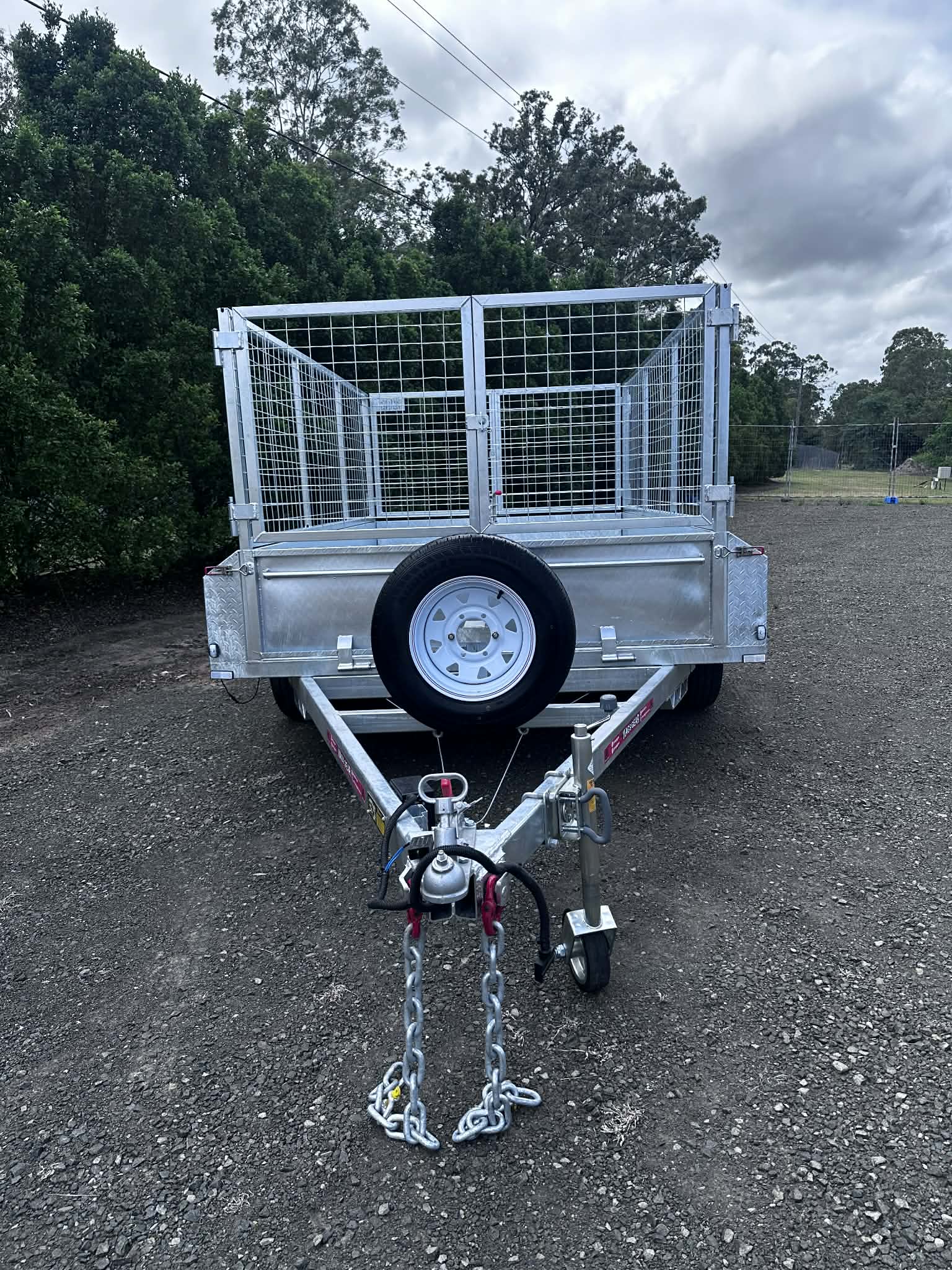

Box Trailer 10×5 3500kg
This 10x5 3500kg box trailer is built for proper work, not weekend tinkering. Fully welded and hot dipped galvanised, it’s made to handle rough roads and hard days.
The longer drawbar and strong frame keep it steady when it’s loaded right up. There’s plenty of room for tools, machinery, steel and all the awkward gear.
If you want a tough trailer that just gets on with the job, this one won’t let you down.

Disclaimer: Images are for illustration purposes only. Specifications, features, and pricing are subject to change without notice due to supplier updates or availability.
^This estimate is not an offer for credit and this financial product may not be suitable or available for you. To obtain credit, an application must be submitted to a lender. Repayment estimate has been calculated on a $5,380, 5 year consumer loan agreement at an annual percentage rate of 9.50% (Comparison rate 12.12%) with no deposit. Comparison rate for the purpose of the National Credit Code is based on a 5 year secured loan of $30,000 with a 0% residual. Warning: This comparison rate applies only to the example or examples given. Different amounts and terms will result in different comparison rates.Costs such as redraw fees or early repayment fees, and cost savings such as fee waivers, are not included in the comparison rate but may influence the cost of the loan.
| Model | 10x5ft Box Trailer |
| ATM | 3500kg |
| TARE | 810kg |
| Axle | 40mm Solid Square |
| Body |
|

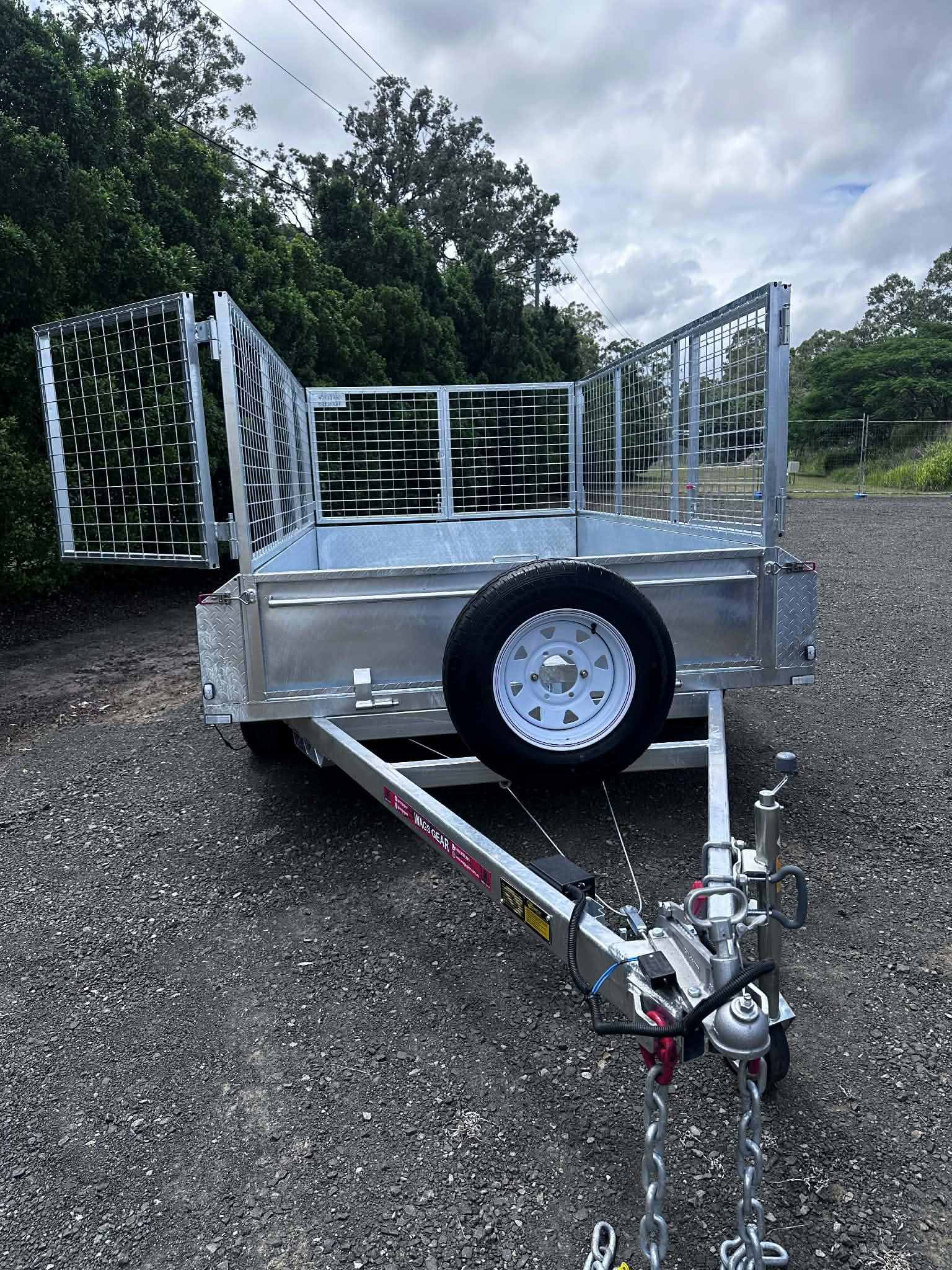

| Cage | Ezy lift® 600mm Mechanism Cage with Minimal Effort to Remove the Set of Cage Hinged Detachable Barn Doors at Both the Front and Back Optional 900mm Cage |
| Chassis | Body 75x50x3 A Frame 100x50x3 |
| Coupling | 50mm Australian Standard |
| Drawbar | 1900mm 100x50x3.00mm |
| External Size | 3980 x 2090mm |
| Flooring and Sides | 2.6mm Checker Plate Steel |
| Internal Size | 2245 x 1524mm |
| Jockey Wheel | Swing Up Greaseable Heavy Duty Plastic Wheel with Solid Rubber Tyre |
| Latches | Stainless Steel Latches |
| Light Plug | Flat 7 Pin Plug |
| Lights | LED Set |

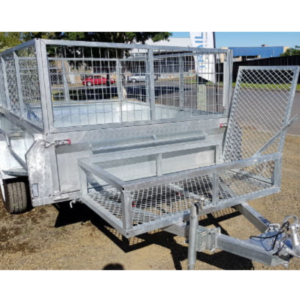

| Options and Accessories | Ladder Rack Canvas Cover Ramps With Gas Struts Toolbox Mower Pad Jerry Can Holder |
| Safety Chain | Australian Design Regulations Approved 10mm Chains and Rated D Shackles |
| Side Height (Tub) | 300mm High Full Welded Optional 500mm |
| Spring | Heavy Duty Spring 45mm x 7mm x 6 Leaf’s |
| Tie Down Rails | 4 Welded All the Way Around Thicker Tubes of Tie Down Rails with Support Legs Won’t Bend |
| Wheels and Tyres | Sunraysia Powder Coated with 6 Stud Landcruiser White Rims Brand New 14inch 185/75R14LT Mudflaps |
| Warranty | 2 Year Structural Warranty |
- How to Order: Submit an enquiry or request a quote, and our team will contact you to confirm pricing, availability, registration, delivery or pickup arrangements, and payment options.
- Deposit: A $500 deposit is required to secure your trailer order. Payment instructions will be provided once your order has been confirmed.
- Final Payment: The remaining balance must be paid in full and cleared before pickup or delivery.
- Apply for Finance: Complete our quick finance application form, and an Ausloans team member will contact you directly.
- Important Note: Submitting an enquiry, quote request or finance application does not confirm or secure an order. Your order is confirmed once availability has been checked and the required deposit has been received.
